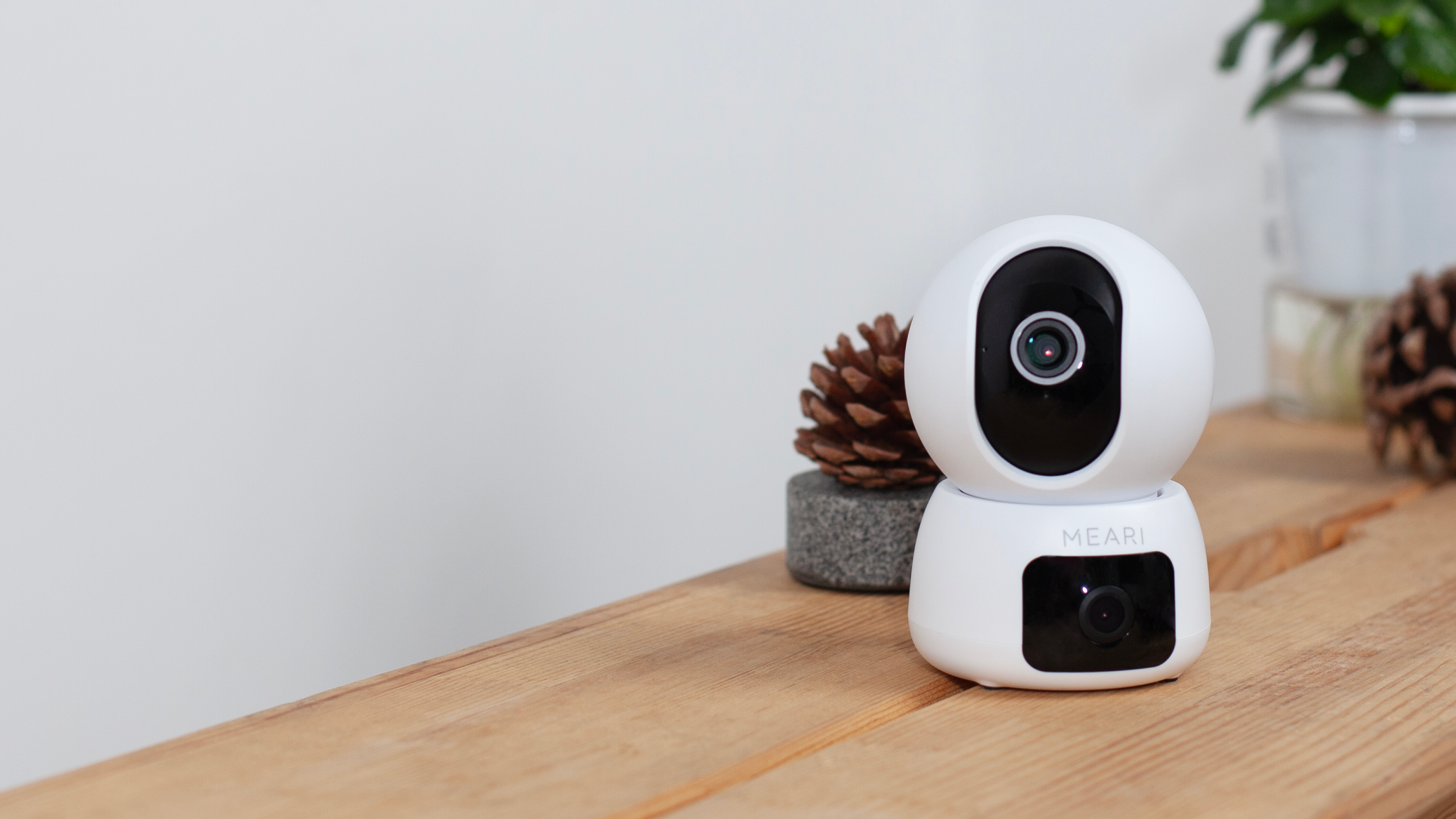

Smart Dual Lens for a Broader View
Dual Lens
Smart Tracking
Smart Night Vision
Alarm Notification Push
Privacy Protection
One Camera, Monitor Two Different Areas Effortlessly
2K+2K
Dual HD View
360° Field of View
3.6mm@F2.0 85°/45°/100°
Dual 2K Resolution Capture Every Corner of Your Home
Home
Meeting Room
Coffee Shop
Clear view of surroundings, even at night.
Dual-Band Wireless Network
Stable connection supports video preview in various environments.
Meari Ensures the Security of Your Video
Protecting your privacy is our top priority. We use advanced encryption technology and strict access controls to prevent data leaks and unauthorized access, ensuring your information remains secure and reliable at all times.
Flexible Storage Options
Supports up to 256GB TF card for local storage, allowing you to view recordings on your phone anytime so you won’t miss any important moments. Additionally, various cloud storage services are available, enabling access to play back even if the device is lost, stolen, or offline.
256 GB
Cloud Storage
Technical parameters
Camera
Image Sensor
1 / 2.8'' 3 Megapixel CMOS
Effective Pixels
Up camera: 2304 (H) × 1296 (V) Down camera: 2304 (H) × 1296 (V)
Min. Illumination
Color 0.1 Lux @ F2.0 Black / White 0.01 Lux @ F2.0
IR Distance
Night visibility up to 10 m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens & FOV(H / V / D)
Up camera: 3.6 mm @ F2.0，90° / 50° / 100° Down camera: 3.2 mm @ F2.0，105° / 55° / 125°
Video&Audio
Compression
H.265
Bit Rate
32 Kbps ～ 2 Mbps
Frame Rate
1 ～ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic/speaker
Network
Alarm Trigger
Intelligent motion / sound detection
Communication Protocol
HTTP, DHCP, DNS, TCP / IP, RTSP
Interface Protocol
Private
Wireless
2.4 GHz & 5 GHz Wi-Fi +BLE (IEEE802.1 b / g / n / ac / ax)
Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
General
Pan/Tilt
Pan: 0° ～ 355°, tilt: -15° ～ 80°
Operating Temperature
-20 °C ～ 50 °C
Power Supply
DC 5 V / 2 A
Power Consumption
Up to 4.5 W
Storage
TF card(Up to 256 GB), Cloud storage, NVR
Dimensions
75 × 75 × 113 mm
Net Weight
196 g
