Snap 33TT

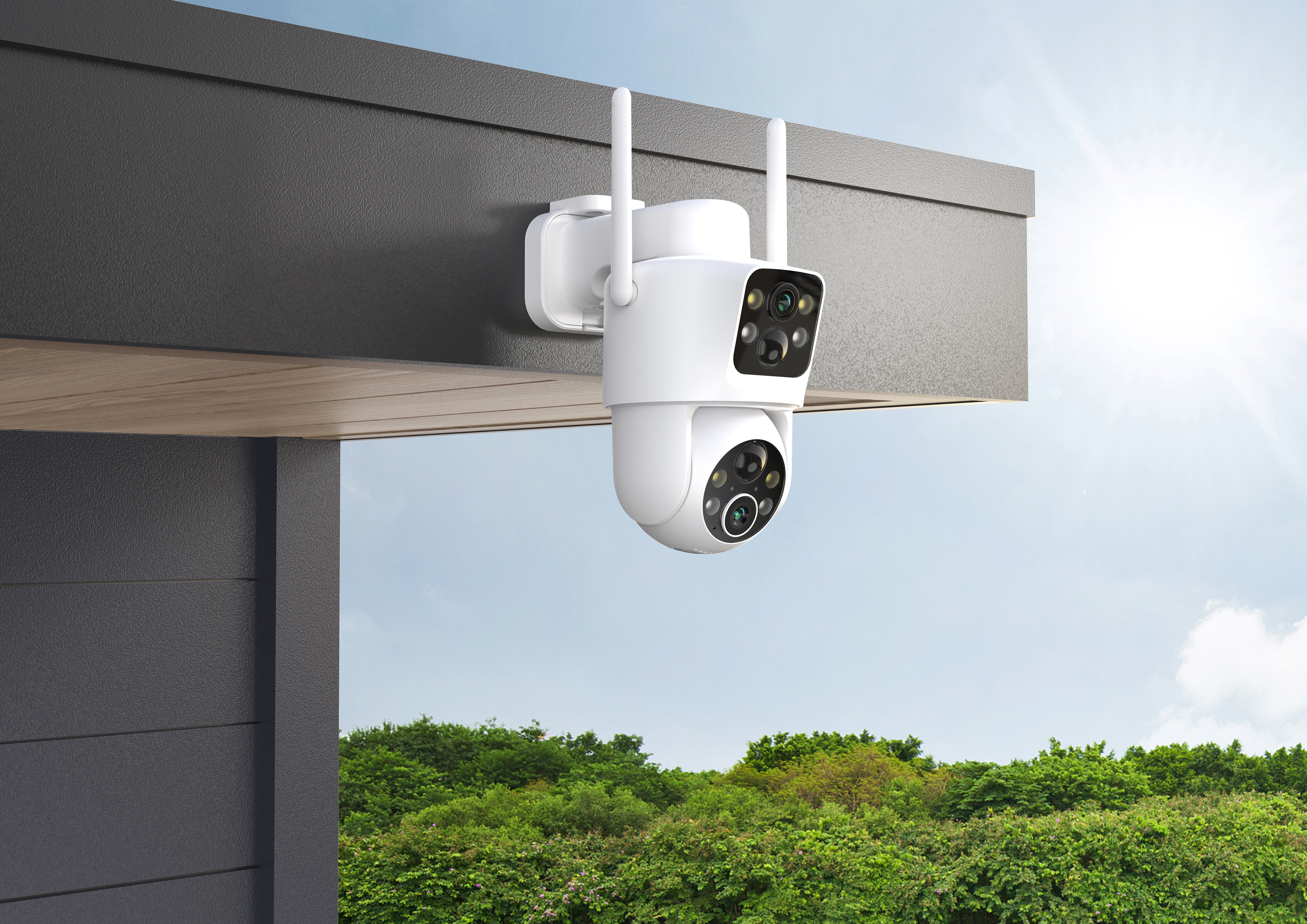

Wi-Fi Outdoor PTZ Battery Integrated Bullet and PTZ Camera
Key Features
Dual 3MP & Color night vision
Support Bluetooth pairing
Support local AI human detection
Support TF card (up to 256GB) storage
Two-way audio (half duplex)
Support P / T function
100% Wireless
10000mAh rechargeable batteries
Support powered by solar panel
Image Sensor
1 / 2.8'' 3Megapixel CMOS
Max. Resolution
2048 (H) × 1536 (V)
Shutter
1 / 15 ～ 1 / 10,000s
Min. Illumination
Color 0.1Lux @ F2.0
Black / White 0.01Lux @ F2.0
IR Distance
Up to 10m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens & FOV(H / V / D)
2.8mm + 2.8mm @ F2.0, MAX 220°
Compression
H.265
Bit Rate
32Kbps ～ 2Mbps
Frame Rate
1 ～ 20fps
Dual Stream
Yes
Audio Input / Output
Built-in mic
Wireless Security
64 / 128-bit WPA / WPA2, WPA-PSK / WPA2-PSK / WPA3_PSK, WPS
Communication Protocol
HTTP、DHCP、DNS、TCP / IP
Interface Protocol
Private
Wireless
2.4GHz Wi-Fi (IEEE802.11b / g / n / ax)
Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
Max. User Access
4
Capacity
10000mAh rechargeable Li batteries
Stand-by Current
200 ～ 900 µA (average)
Working Current
150 ～ 320 mA (IR off)
Stand-by Time
6 months
Working Time
180 days
PIR Detection Range
Up to 9m
PIR Angle
120°
Operating Temperature
-20 °C to 50 °C
Pan / Tilt
Pan: 0° ～ 340°, tilt: 0° ～ -90°
Weather Resistance
IP65
Power Supply
DC 5V / 2A
Power Consumption
Up to 2W
Alarm Trigger
Motion detection
Ports
Type-C × 1
Storage
TF card(Up tp 256GB), Cloud storage
Dimensions
170 × 123 × 150mm
Weight
550g
