Snap 26F
Wi-Fi Outdoor PTZ Battery Camera
Key Features
3 MP Battery Camera
100% wire-free
5200 mAh rechargeable batteries
PIR human detection
Two-way audio (half duplex)
IP65 weatherproof

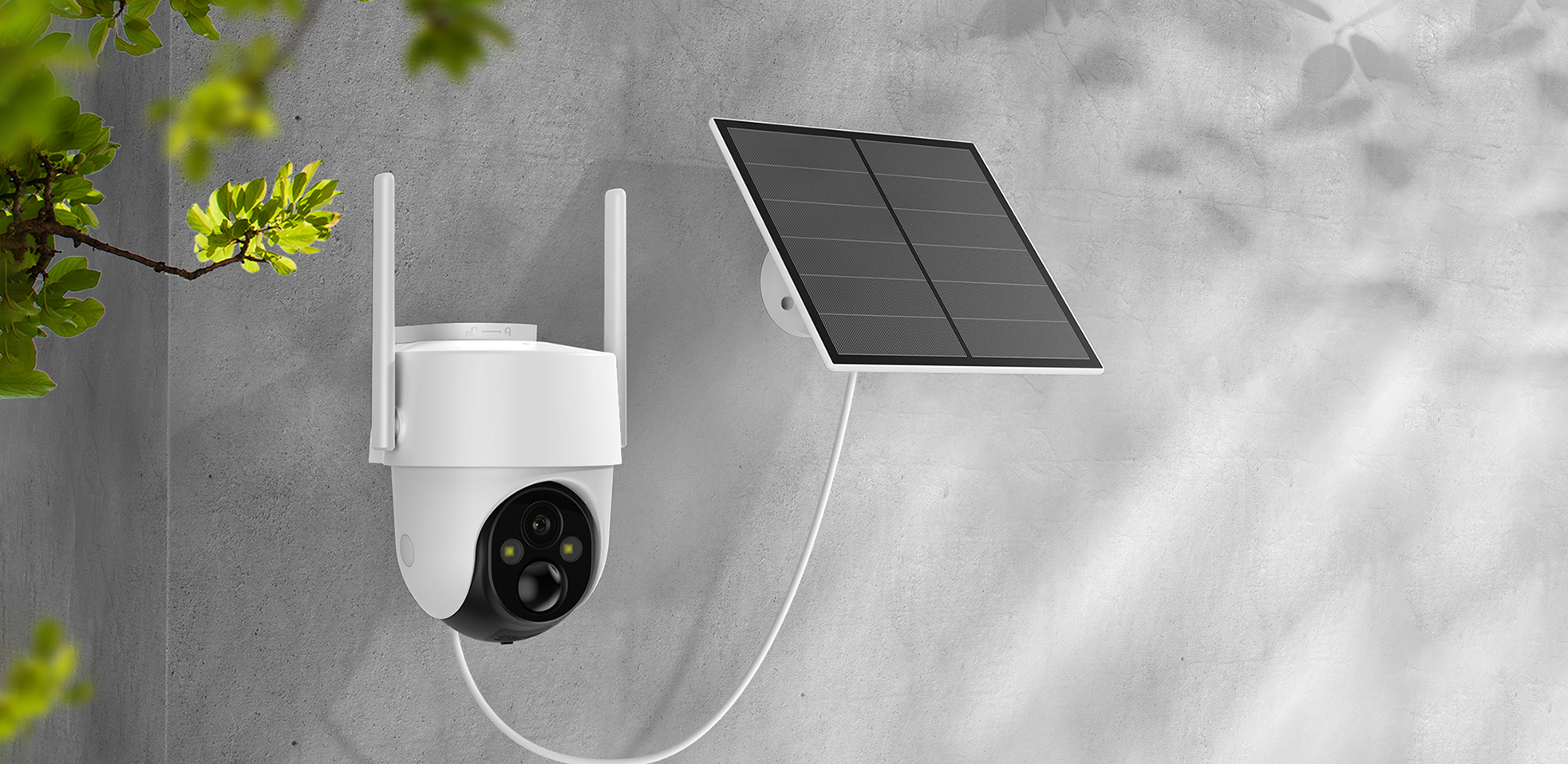

Support powered by solar panel
Support P/T function
Image Sensor
1 / 2.8'' 3 Megapixel CMOS
Effective Pixels
2304 (H) × 1296 (V)
Min. Illumination
Color 0.1 Lux @ F1.6
Black / White 0.01 Lux @ F1.6
IR Distance
Night visibility up to 10m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens & FOV(H / V / D)
4 mm @ F1.6, 85° / 50° / 100°
Compression
H.264
Bit Rate
32 Kbps ～ 2 Mbps
Frame Rate
1 ～ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic
Alarm Trigger
PIR human-body detection
Communication Protocol
HTTP, DHCP, DNS, TCP / IP
Interface Protocol
Private
Wireless
2.4 GHz Wi-Fi (IEEE802.11 b / g / n / ax)
Supported Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
Capacity
5200 mAh rechargeable Li batteries
Stand-by Current
200–800 µA (average)
Working Current
150 ～ 220 mA (IR off)
Stand-by Time
6 months
Working Time
1.5 ～ 2 months (varies based on settings, usage & temperature)
PIR Detection Range
Up to 9 m
PIR Angle
120°
Operating Temperature
-10 °C ～ 50 °C
Pan/Tilt
Pan: 0° ～ 355°, tilt: 0° ～ -90°
IP Rating
IP65
Power Supply
DC 5 V / 1 A
Power Consumption
Up to 2 W
Optional Accessory
Solar panel
Storage
TF card(Up to 256 GB), Cloud storage
Dimensions
115 × 124 × 135 mm
Weight
505 g
