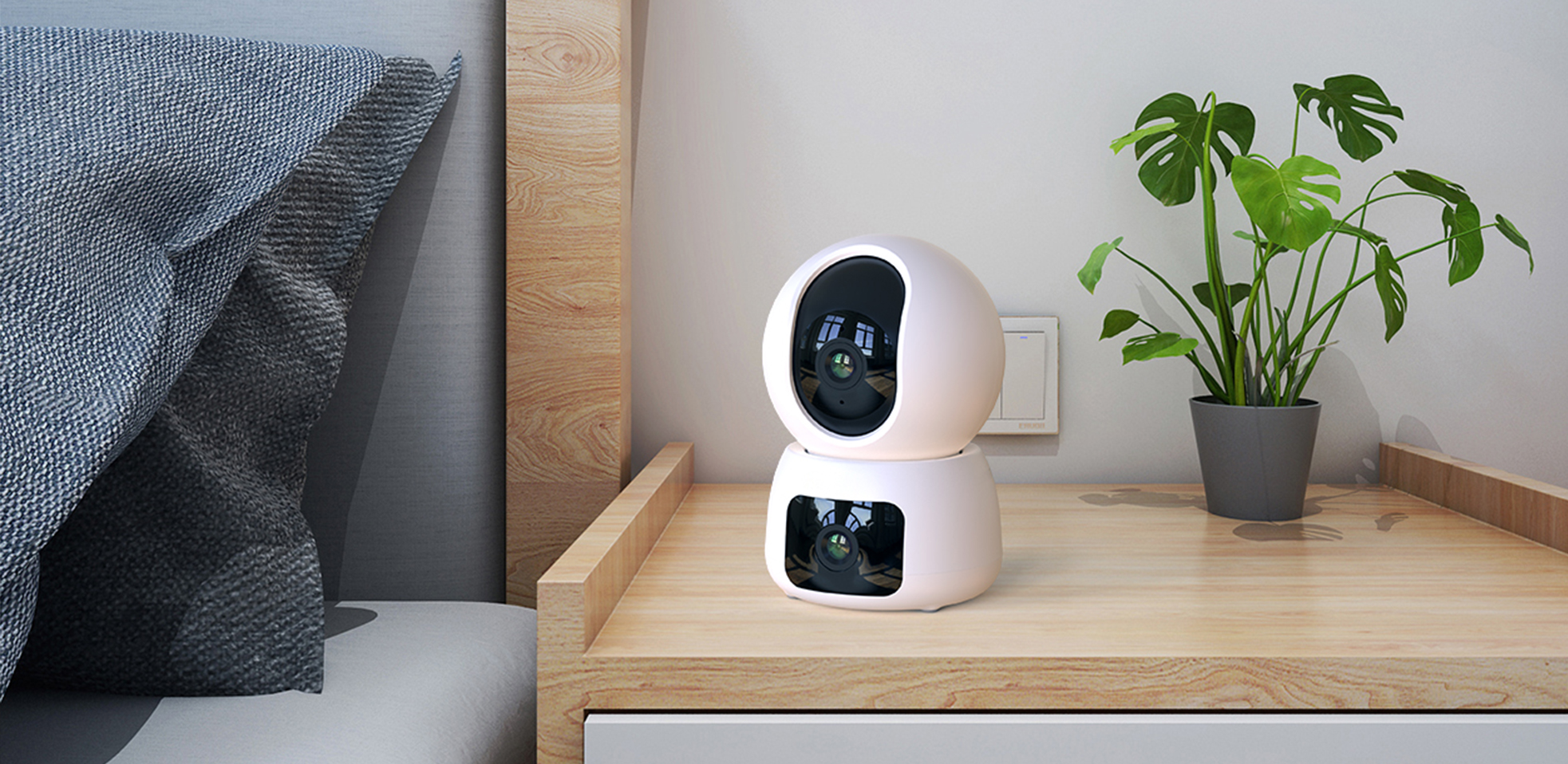

Speed 14TT
Indoor PTZ Dual-Lens Network Camera
Key Features
3 MP * 3 MP Indoor Pan & Tilt Camera
Hidden lens to protect privacy
Auto tracking
Intelligent motion / sound detection
Motion zone selection
Two-way audio (half duplex)
Night visibility up to 10 m
Support 2.4 GHz & 5 GHz Wi-Fi
Support Bluetooth
Support WebRTC
Image Sensor
1 / 2.8'' 3 Megapixel CMOS
Effective Pixels
Up camera: 2304 (H) × 1296 (V)
Down camera: 2304 (H) × 1296 (V)
Min. Illumination
Color 0.1 Lux @ F2.0
Black / White 0.01 Lux @ F2.0
IR Distance
Night visibility up to 10 m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens & FOV(H / V / D)
Up camera: 3.6 mm @ F2.0，90° / 50° / 100°
Down camera: 3.2 mm @ F2.0，105° / 55° / 125°
Compression
H.265
Bit Rate
32 Kbps ～ 2 Mbps
Frame Rate
1 ～ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic/speaker
Alarm Trigger
Intelligent motion / sound detection
Communication Protocol
HTTP, DHCP, DNS, TCP / IP, RTSP
Interface Protocol
Private
Wireless
2.4 GHz & 5 GHz Wi-Fi +BLE (IEEE802.1 b / g / n / ac / ax)
Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
Pan/Tilt
Pan: 0° ～ 355°, tilt: -15° ～ 80°
Operating Temperature
-20 °C ～ 50 °C
Power Supply
DC 5 V / 2 A
Power Consumption
Up to 4.5 W
Storage
TF card(Up to 256 GB), Cloud storage, NVR
Dimensions
75 × 75 × 113 mm
Net Weight
196 g
