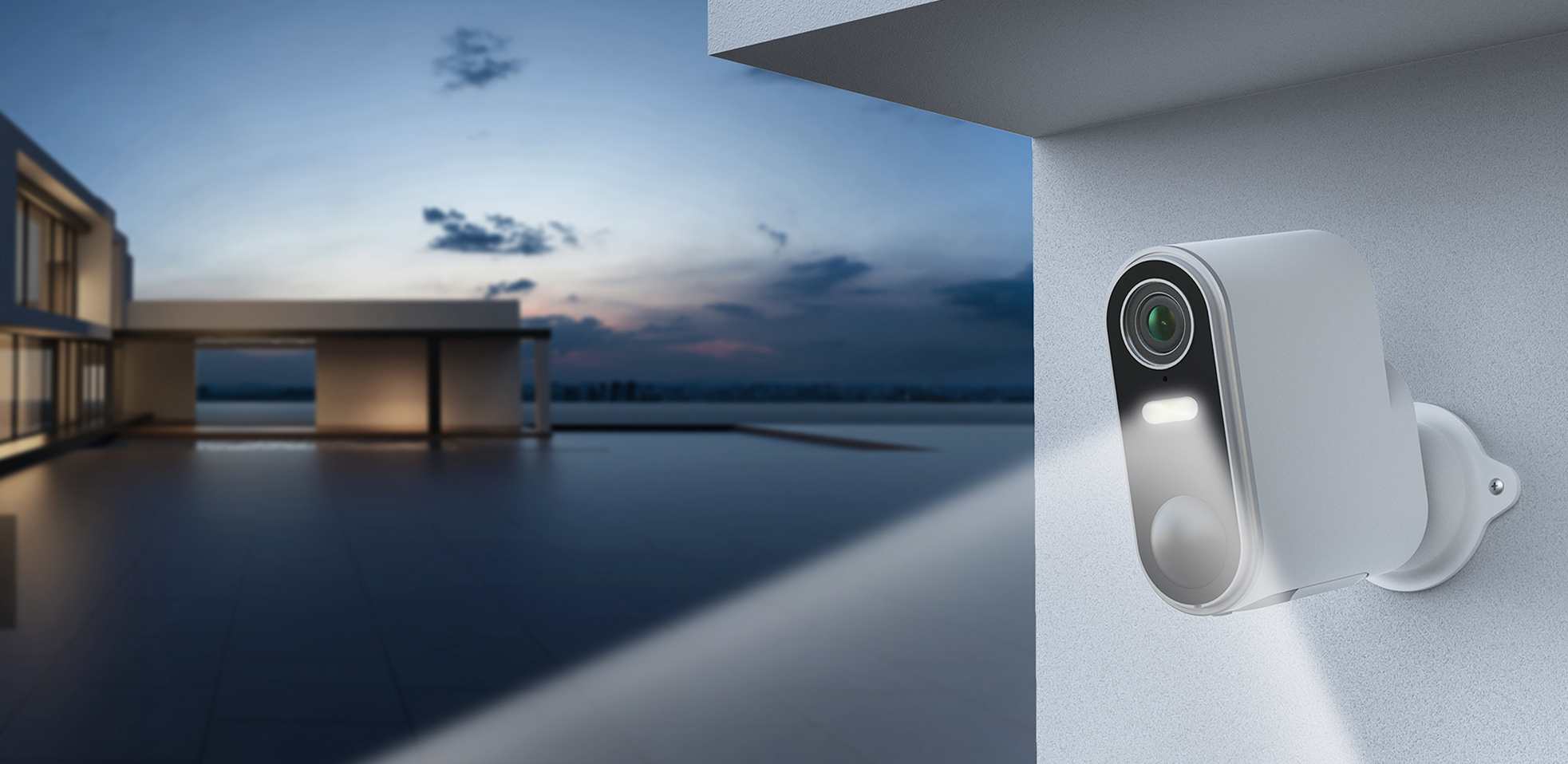

Snap 12F
Wi-Fi Outdoor Battery Wireless Camera
Key Features
5 MP Battery Camera
100% wire-free
Rechargeable batteries
PIR human detection
Intelligent night vision settings
IP65 weatherproof
Support powered by solar panel
Color night vision
Light & sound alarm
Image Sensor
1 / 2.7'' 5 Megapixel CMOS
Effective Pixels
2592 (H) × 1944 (V)
Min. Illumination
Color 0.1 Lux @ F2.0
Black / White 0.01 Lux @ F2.0
IR Distance
Night visibility up to 10 m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens(H / V / D)
3.0 mm @ F2.0, 105° / 75° / 140°
Compression
H.265
Bit Rate
32 Kbps ～ 2 Mbps
Frame Rate
1 ～ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic / speaker
Alarm Trigger
PIR human detection
Communication Protocol
HTTP, TCP / IP, DHCP, DNS
Interface Protocol
Private
Wireless
2.4 GHz Wi-Fi (IEEE802.11 b / g / n / ax)
Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
Capacity
5200 mAh
Standby Current
200 ～ 800 µA (average)
Working Current
150 ～ 200 mA (IR LED off)
Standby Time
6 months
Working Time
1.5 ～ 2 months (10 times wake up per day)
PIR Detection Range
Up to 10 m
PIR Angle
120°
Operating Temperature
-10 °C ～ 50 °C
IP Rating
IP65
Power Supply
DC 5 V / 1 A
Consumption
Up to 2.5 W
Optional Accessory
Solar panel
Storage
TF card(Up to 256 GB), Cloud storage
Dimensions
38 × 93 × 79 mm
Net Weight
225 g
