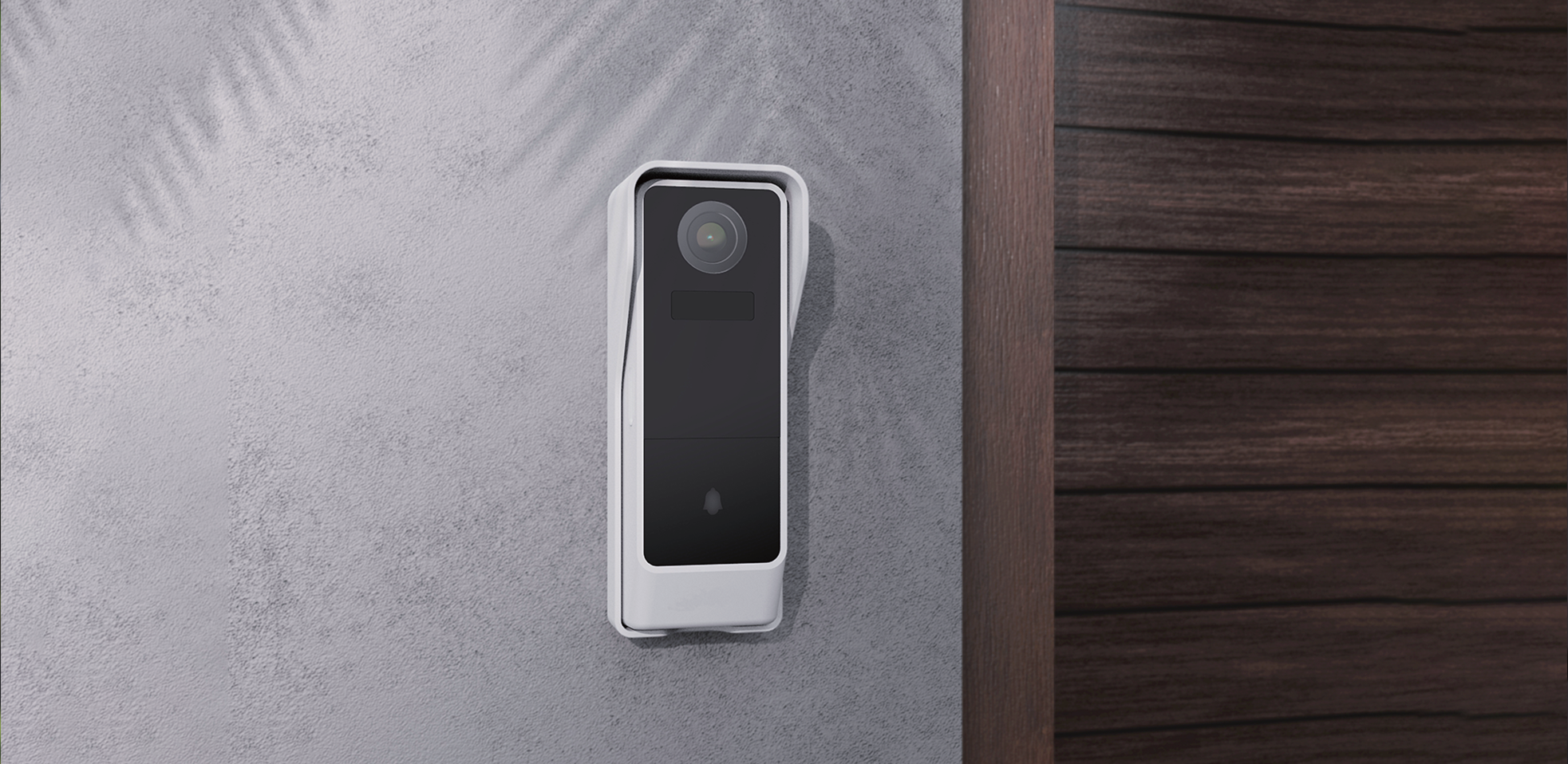

Bell 19T
Outdoor Wi-Fi Battery Doorbell
Key Features
3 MP Battery Doorbell
4800 mAh rechargeable batteries
PIR human detection
IP65 weatherproof
Two-way audio (full duplex)
125° wide viewing angle
Anti-theft alarm
Image Sensor
1 / 2.8'' 3 Megapixel CMOS
Effective Pixels
1984(H) x 1488(V)
Min. Illumination
Color 0.1 Lux @ F2.0,
Black / White 0.01 Lux @ F2.0
IR Distance
Night visibility up to 10 m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens(H / V / D)
3.2 mm @ F2.0, 95° / 70° / 125°
Compression
H.264
Bit Rate
32 Kbps ～ 2 Mbps
Frame Rate
1 ～ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic / speaker
Alarm Trigger
Button triggering, PIR detection
Communication Protocol
HTTP、DHCP、DNS、TCP / IP
Interface Protocol
Private
Wireless
2.4 GHz Wi-Fi (IEEE802.11 b / g / n)
Mobile Phone OS
iOS 9 or later,Android 5 or later
Security
AES128
Battery Capacity
4800 mAh rechargeable Li batteries
Standby Current
200 ～ 800 µA (average)
Working Current
200 ～ 300 mA (IR off)
Standby Time
6 months
Working Time
1–2 months (varies based on settings, usage & temperature)
PIR Detection Rangle
Up to 5 m
PIR Detection Angle
100°
Operating Temperature
-10 °C ～ 50 °C
IP Rating
IP65
Power Supply
DC 5 V / 1 A
Power Consumption
Max. 2 W
Storage
TF card(Up to 256 GB), Cloud storage
Optional Accessory
Wireless chime
Dimensions
53 x 39 x 137 mm
Net Weight
200 g
