Ultra-Clear Image Quality, Capturing Every Detail
2K HD Image Quality
Full-Color Night Vision
High-Capacity Battery
Solar Charging
Smart Recognition
Local Storage
Wireless Installation, Suitable for a Wider Range of Scenarios

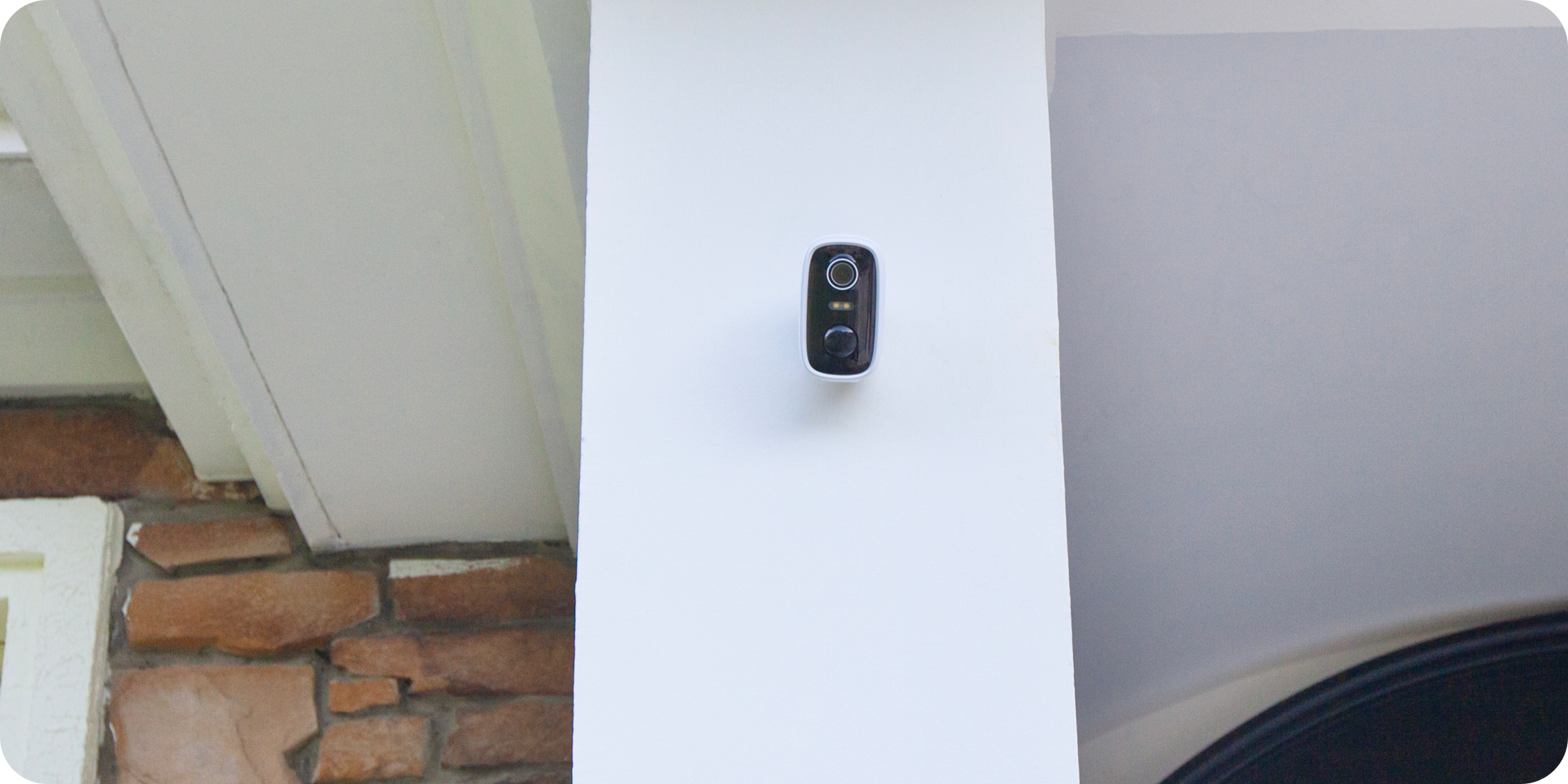

Front Yard

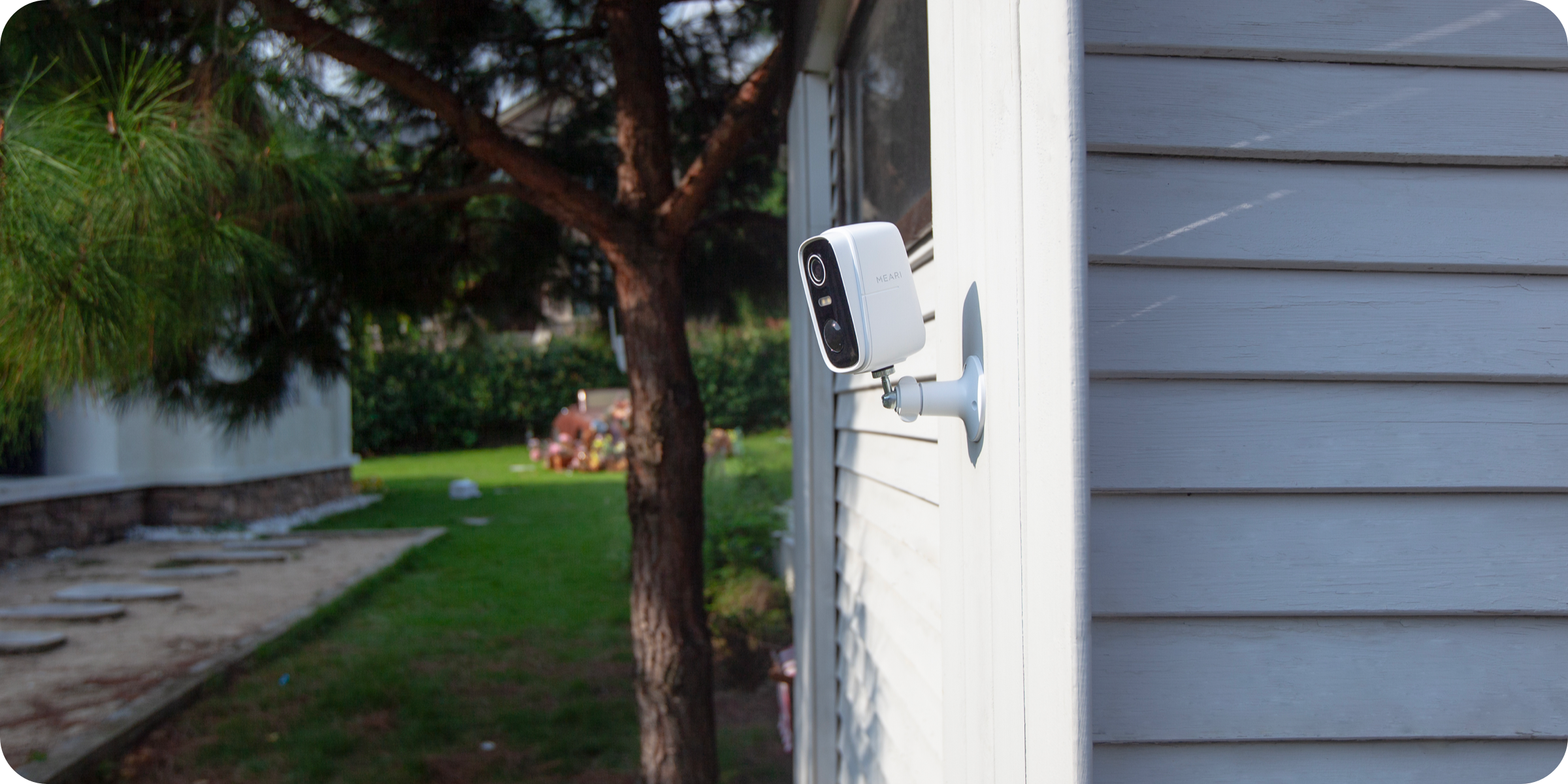

Backyard

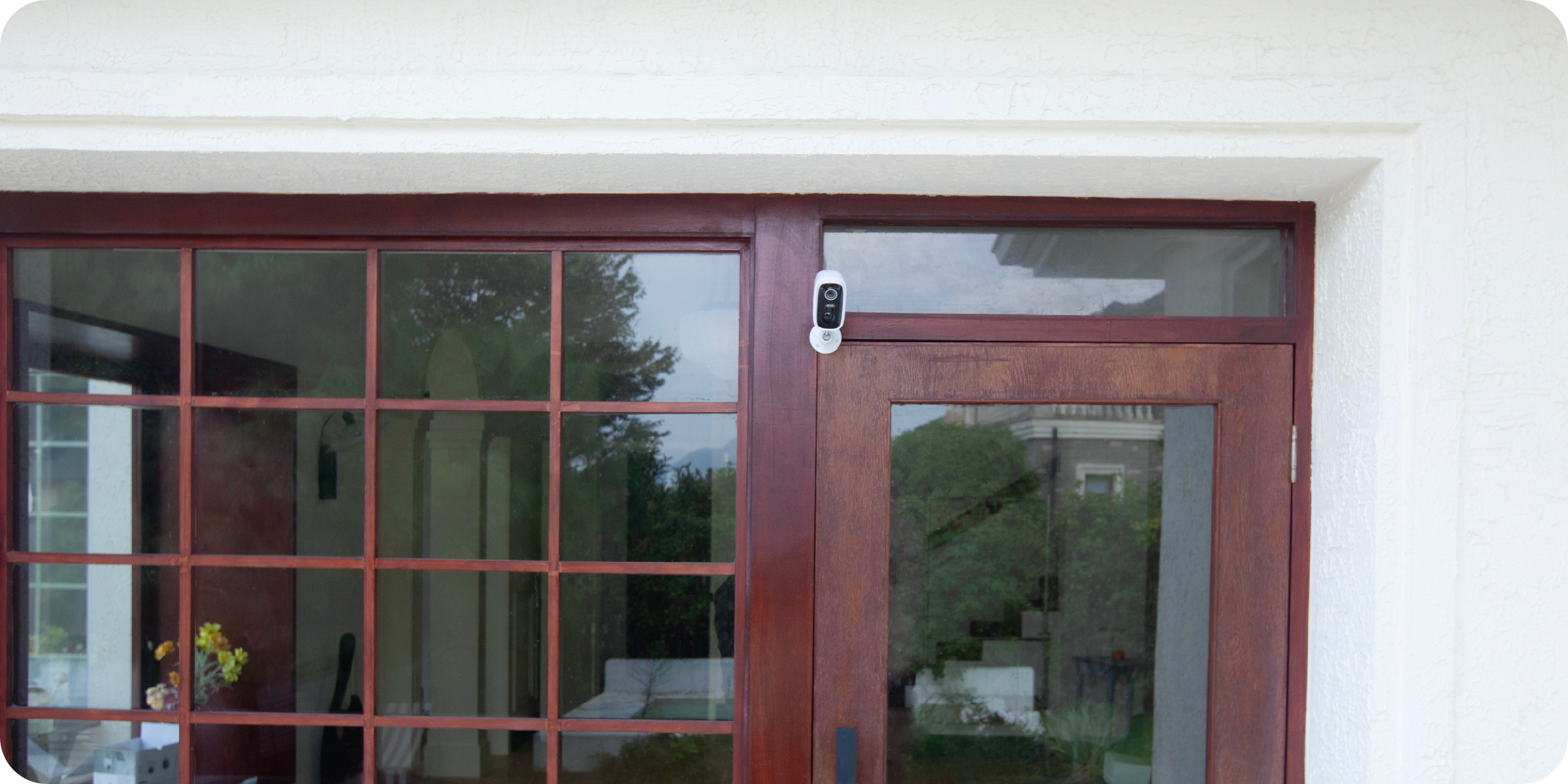

Side Yard
SVG Image

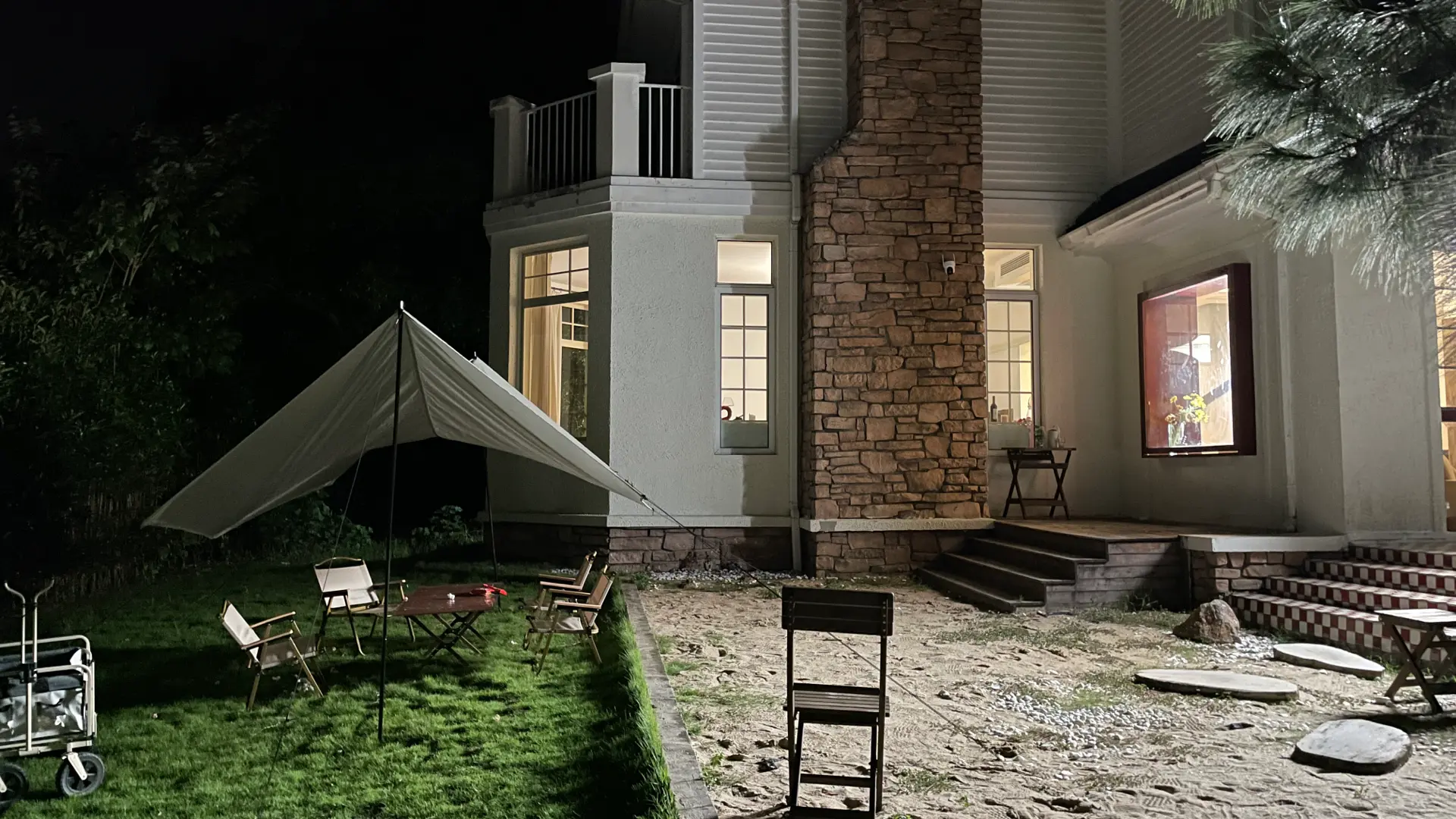

2K Ultra HD Full-Color
With dual fill lights, it delivers clear visuals day and night, capturing every detail.
Uninterrupted Protection
Requires Only Two Hours of Sunlight Daily for Year-Round Stable Operation
Compatible with Solar3 (3W) and Solar4 (5W) solar panels. Meari Lab data: up to 4 months of battery life with a 5200mAh battery in the absence of sunlight.
SVG Image
AI Smart Protection
Local AI human analysis with smart notification alerts. Supports cloud-based extensions for pet, package, and facial detection, keeping you in control of home security at all times.
Smart alarm notifications keep you informed of your home’s security status at all times.

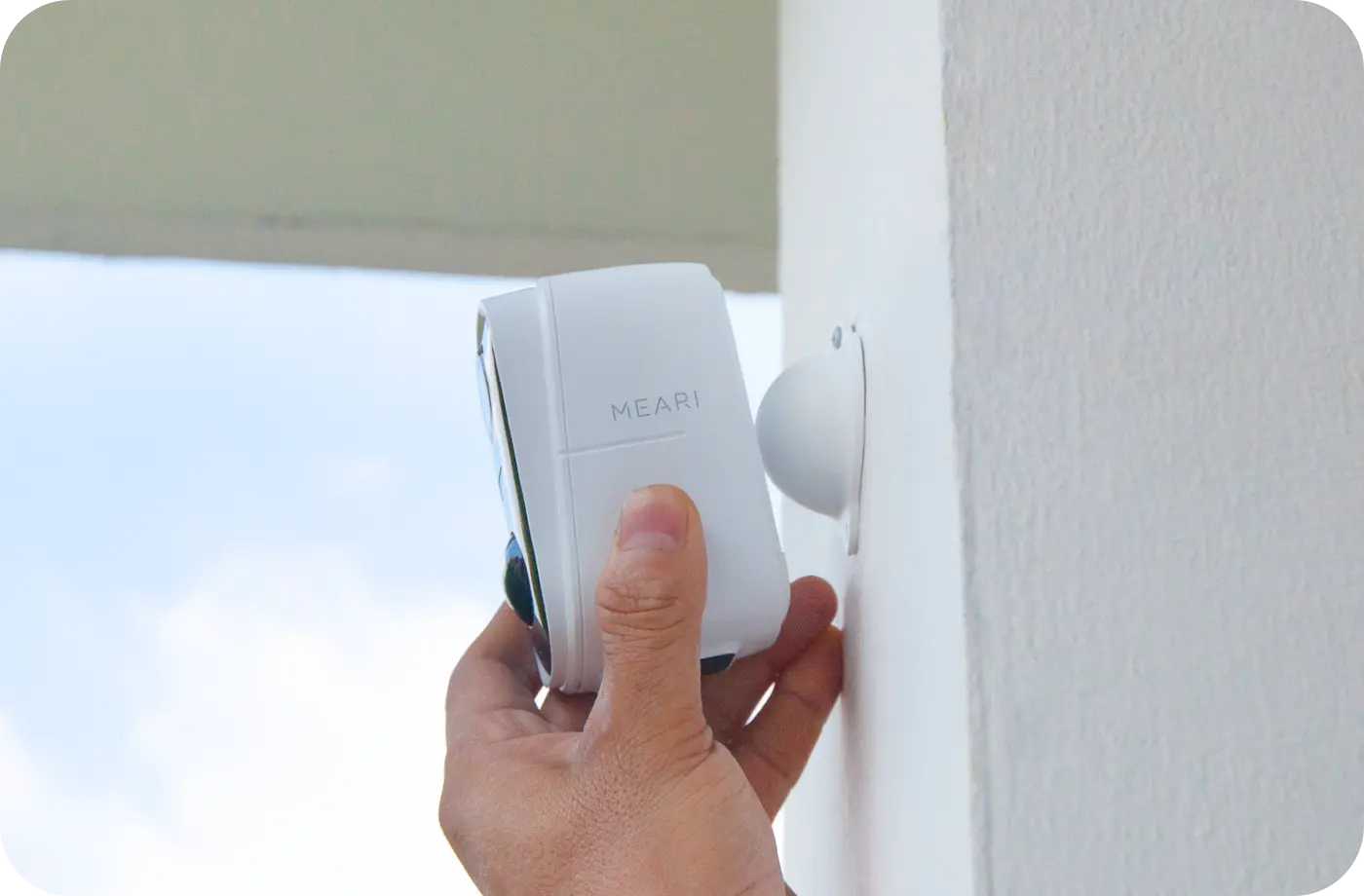

Easy Installation, All-Weather Protection
Quick-release bracket design with no wiring required—installation is easily completed in just 5 minutes.

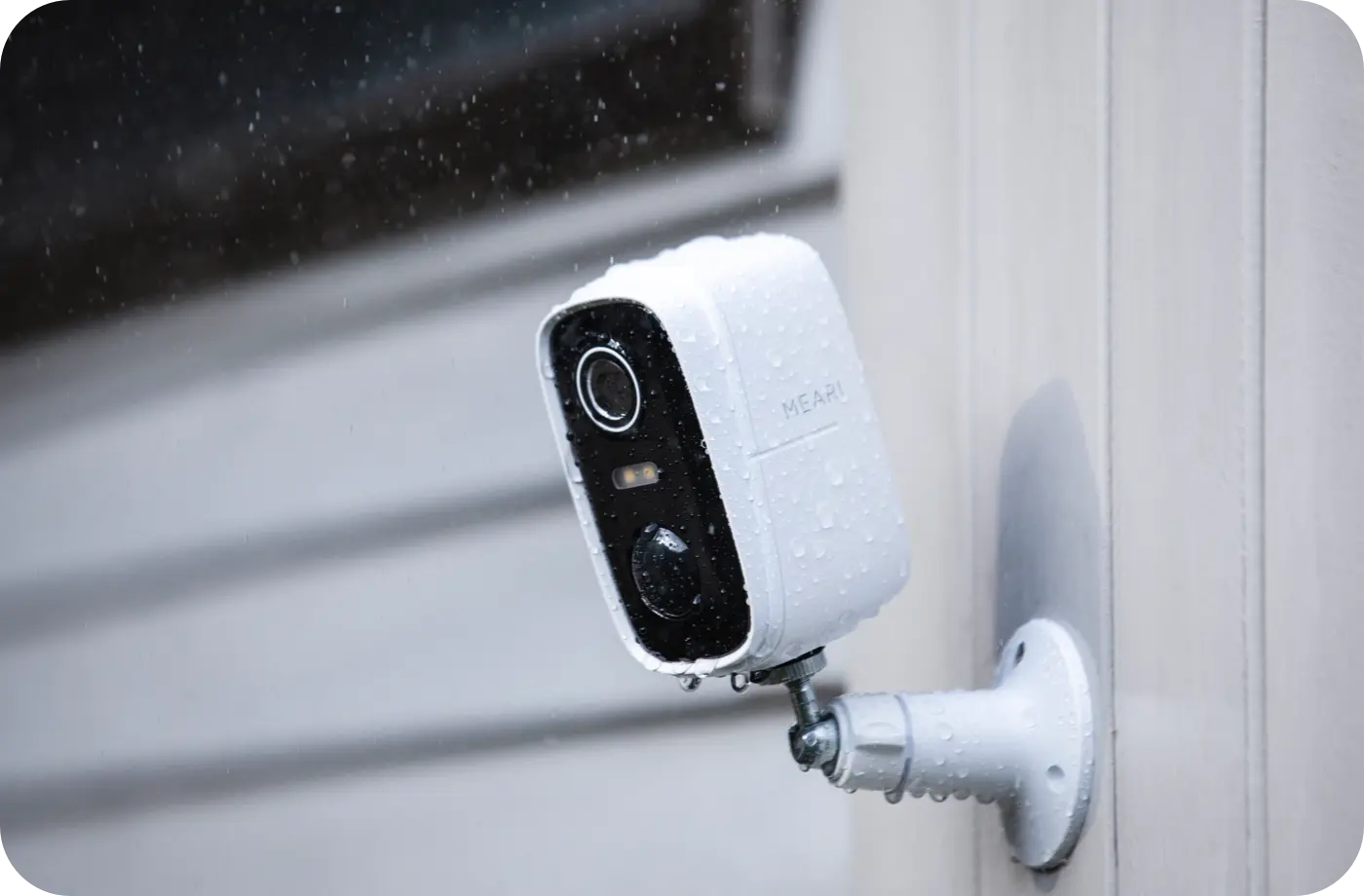

IP65-rated waterproof and dustproof, ensuring stable operation in extreme heat or cold, providing all-weather protection for your home.
Flexible Storage Options
Supports up to 256GB TF card for local storage, allowing you to view recordings on your phone anytime so you won’t miss any important moments. Additionally, various cloud storage services are available, enabling access to play back even if the device is lost, stolen, or offline.
256 GB
Cloud Storage
Technical parameters
Camera
Image Sensor
1 / 2.8'' 3 Megapixel CMOS
Effective Pixels
2304 × 1296
Min. Illumination
Color 0.1 Lux @ F2.0 Black / White 0.01 Lux @ F2.0
Night Visibility
Up to 30m
Day / Night
Auto(ICR) / Color / B & W
WDR
DWDR
Lens(H / V / D)
3.2 mm @ F2.0, 135° / 110° / 60°
Video&Audio
Compression
H.264
Bit Rate
32 Kbps ~ 2 Mbps
Frame Rate
1 ~ 25 fps
Dual Stream
Yes
Audio Input / Output
Built-in mic / speaker
Network
Alarm Trigger
PIR human detection
Communication Protocol
HTTP, TCP / IP, DHCP, DNS
Interface Protocol
Private
Wireless
2.4 GHz Wi-Fi (IEEE802.11 b / g / n / ax)
Supported Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
Battery&PIR
Capacity
5200 mAh
Stand-by Consumption
200 ~ 1000µA (average)
Working Current
150 ~ 200 mA (IR LED off)
Stand-by Time
6 months
Working Time
1.5 ~ 2 months (varies based on settings, usage & temperature)
PIR Detection Range
Max. 9 m
PIR Angle
120°
General
Operating Temperature
-20 °C ~ 50 °C
IP Rating
IP65
Power Supply
DC 5 V / 1 A
Consumption
Up to 2 W
Optional Accessory
Solar panel
Storage
TF card(Up to 256 GB), Cloud storage
Dimensions
64 × 59 × 101 mm
Net Weight
265 g
Collapse parameter
