24/7 Protection for Your Safety
4MP Resolution
AI Smart Detection
Two-Way Talk
Cloud/SD Card Storage
Full Color Night Vision
Dual-Band Wi-Fi
4MP HD Pan-Tilt
Two-Way Audio
Equipped with a high-sensitivity microphone and HD speaker for real-time audio capture and smooth two-way talk—protect your home from anywhere

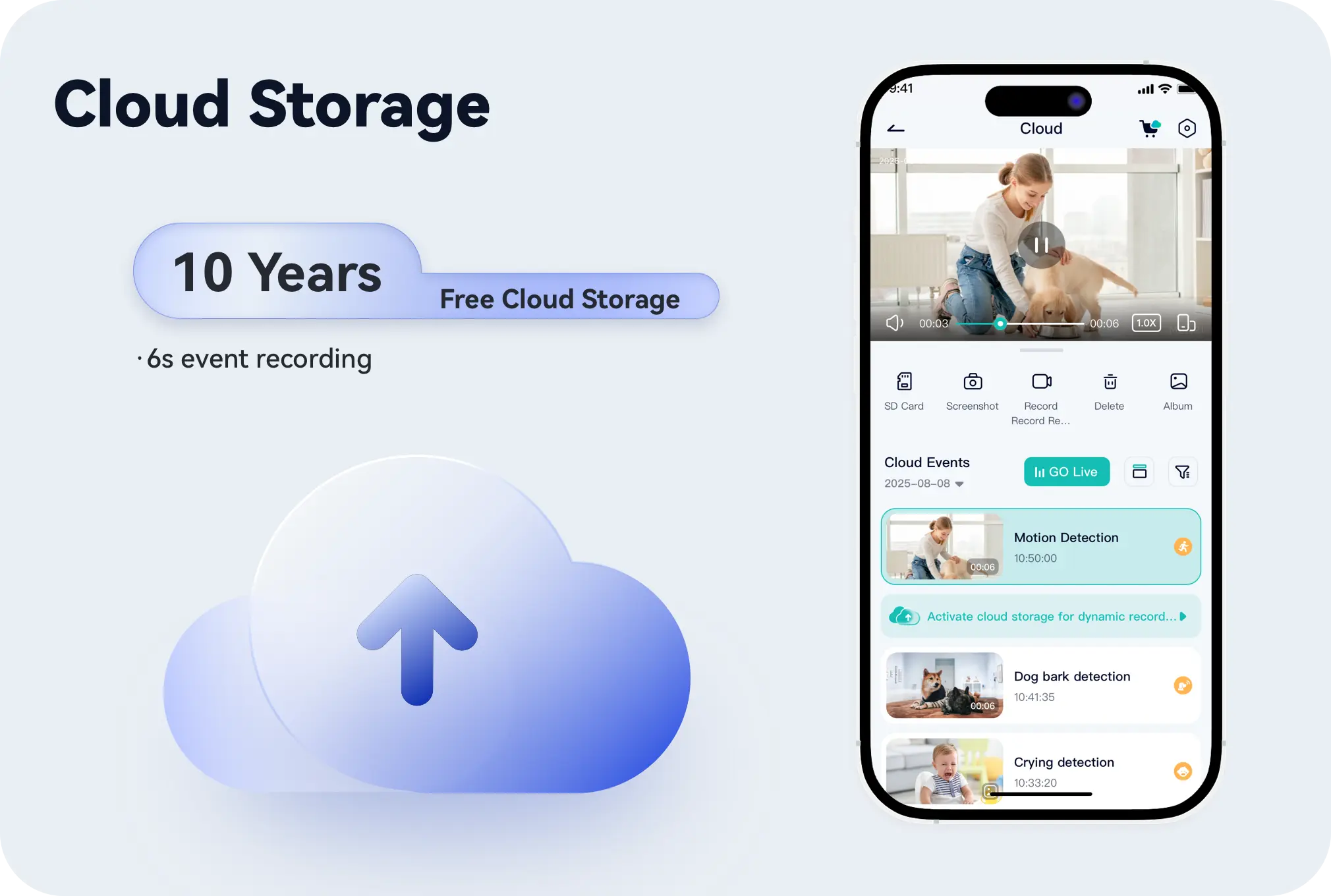

Cloud Storage & Local Storage
Dual storage modes for safety and flexibility—double protection for total peace of mind

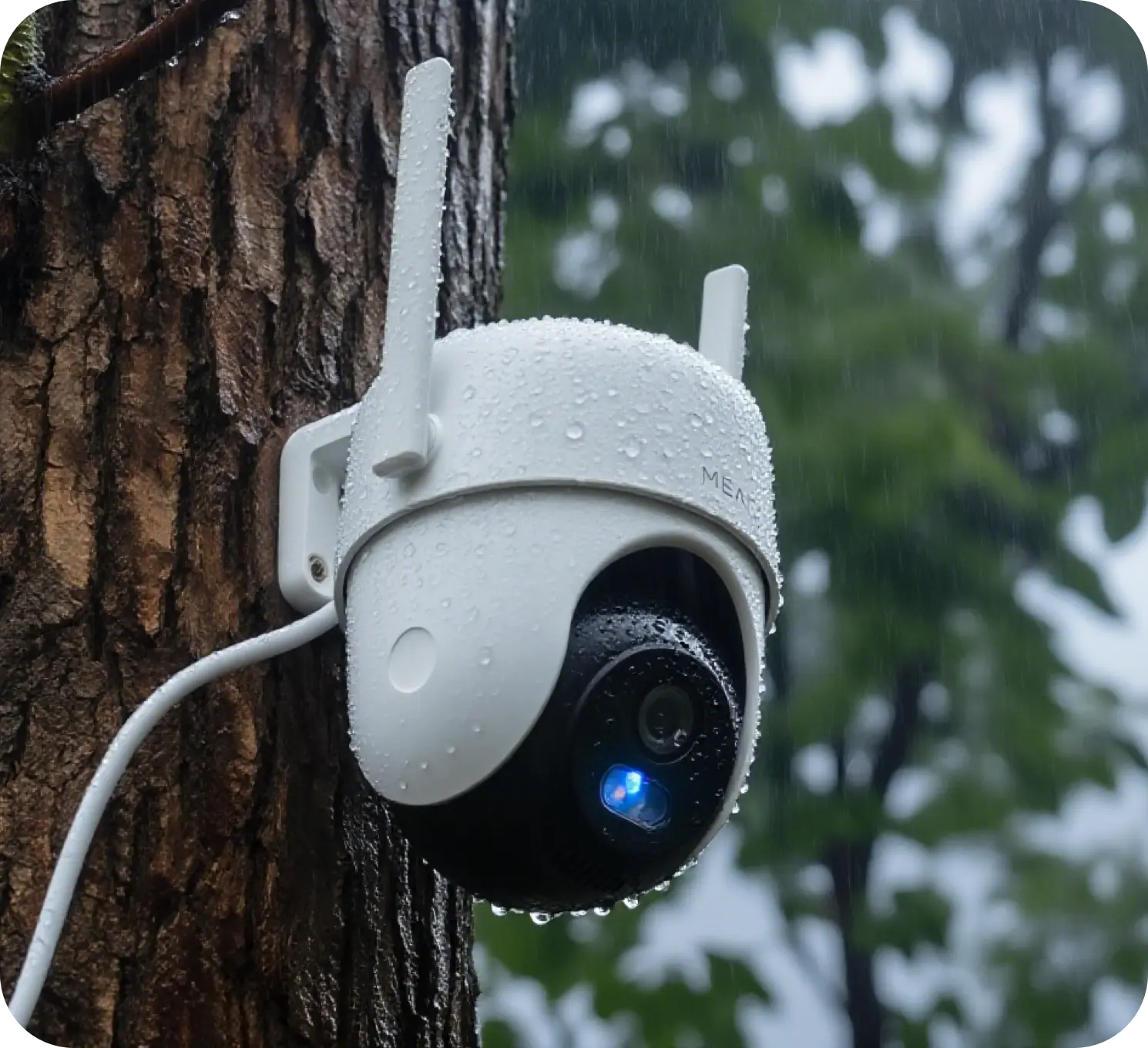

IP65 Waterproof
With an IP65-rated PT camera, you can install it outdoors and track activity with confidence
Active Defense — Sound & Light Deterrence
When motion is detected, the camera triggers an alarm and flashing light for dual deterrence

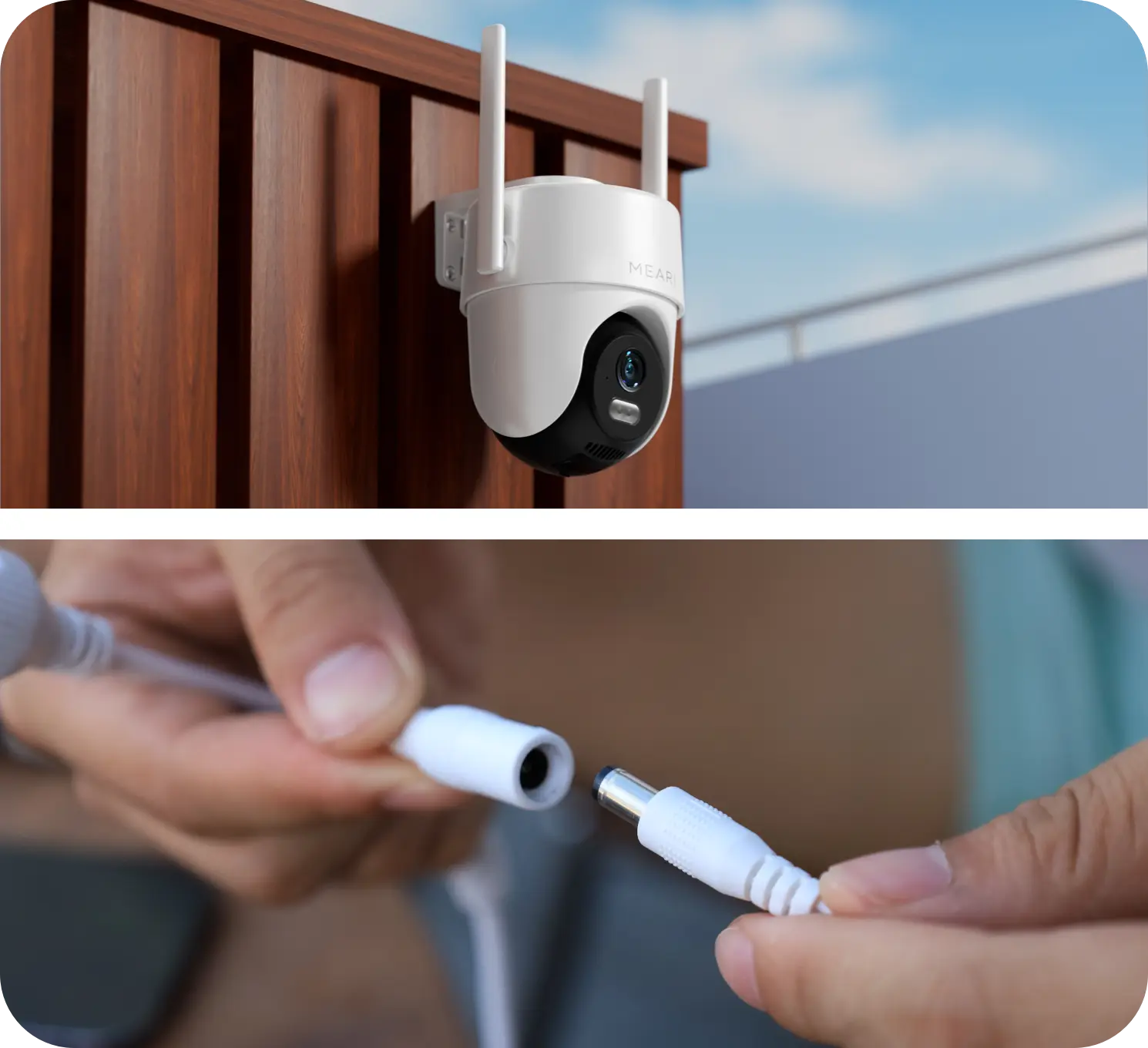

Outdoor Installation
Meari Cam S2 Dual-Band Wi‑Fi PT Camera | IP65 weatherproof

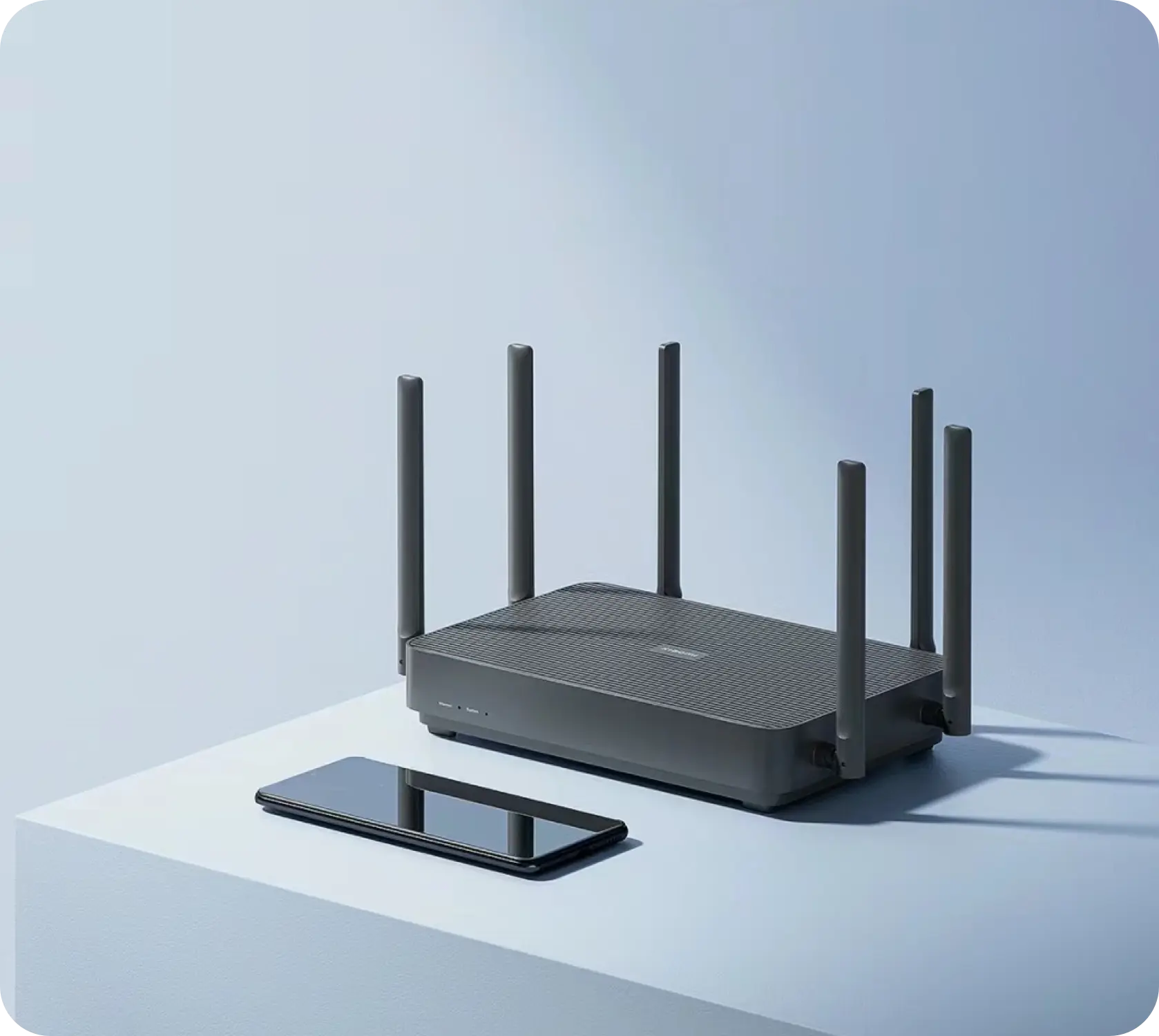

Dual-Band Wi‑Fi
The device supports wireless signal transmission in two different frequency bands, 2.4GHz and 5GHz. Compared with traditional single-band (2.4GHz only) Wi-Fi, it can more flexibly respond to network needs in different scenarios and balance "coverage range" and "transmission speed".

2.4GHz & 5GHz

Signal connectivity

Technical parameters
Camera
Image Sensor
1/2.8'' 3Megapixel CMOS
Effective Pixels
2304(H) x 1296(V)
Shutter
1/20~1/10,000s
Min. Illumination
"Color 0.01Lux@F1.6 Black/White 0.01Lux@F1.6"
Night Visibility
Up to 30m
Day/Night
Auto(ICR)/Color/B&W
WDR
DWDR
Lens&FOV(H/V/D)
4mm@F1.6, 100°/85°/50°
Video&Audio
Compression
H.264
Bit Rate
32Kbps~2Mbps
Frame Rate
7~15fps
Dual Stream
Yes
Audio Input/Output
Built-in mic/speaker
Network
Alarm Trigger
Intelligent motion/sound detection、Sound& light alarm
Wireless Security
64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Communication Protocol
HTTP, DHCP, DNS, TCP/IP, RTSP
Interface Protocol
Private
Wireless
2.4GHz & 5GHz Wi-Fi (IEEE802.11b/g/n/ac/ax)
Mobile Phone OS
iOS 9 or later, Android 5 or later
Security
AES128
General
Pan/Tilt
Pan: 0°~355°, tilt: 0°~-90°
Operating Temperature
-20 °C to 50 °C
Power Supply
DC 5V/1A
IP Rating
IP65
Storage
TF card(Up to 256GB), Cloud storage, NVR
Dimensions
106 x 123 x 206mm (power cable and bracket not included)
Net Weight
430g
Collapse parameter
Download Instructions

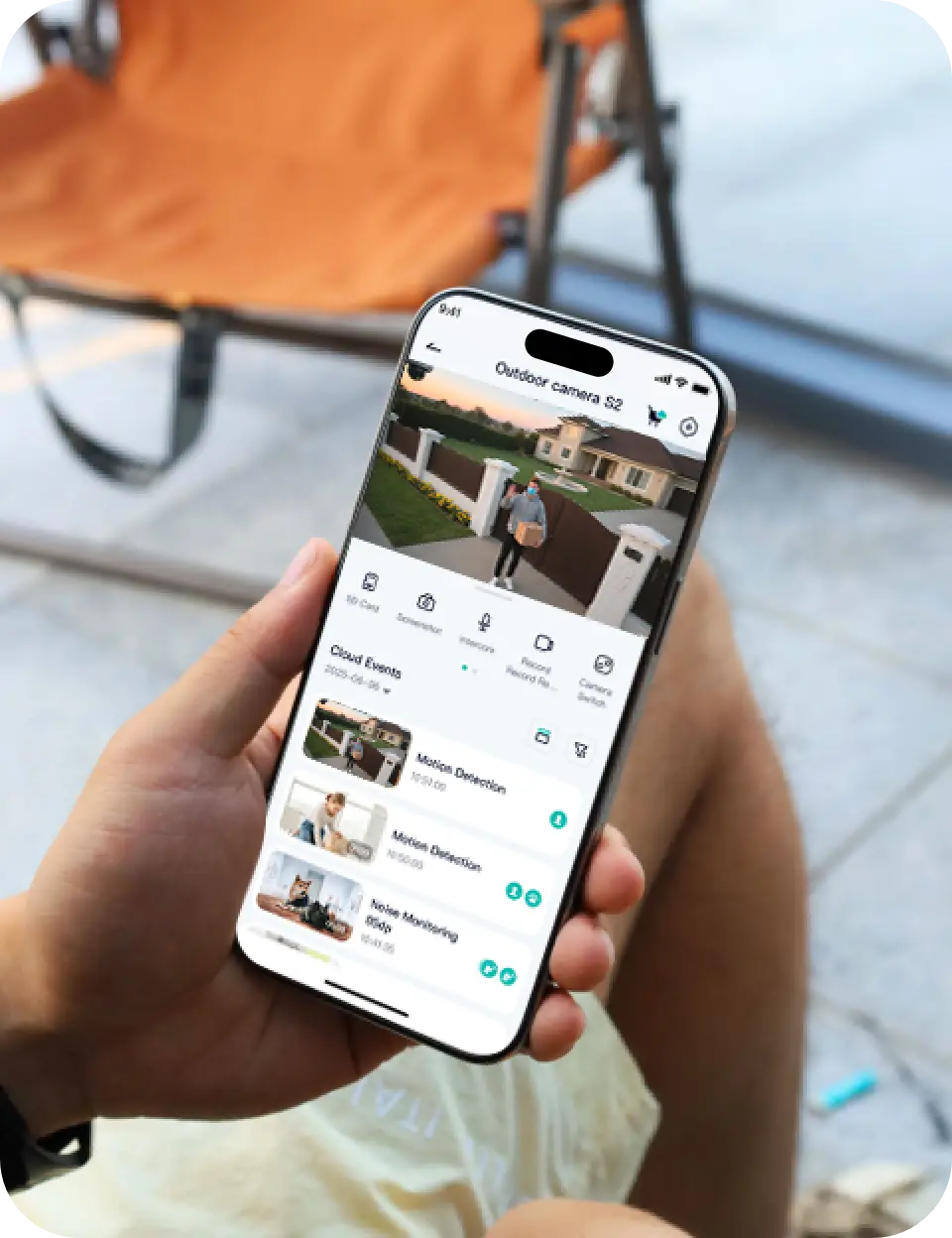

Meari Ensures Your Home's Security
